SDN Controller

SDN Controller is available in XOA 5.44 and higher

The SDN Controller enables a user to create pool-wide and cross-pool (since XOA 5.48.1) private networks.

How does it work?

Please read the dedicated devblog on the SDN Controller and its extension for cross-pool private networks.

Usage

Network creation

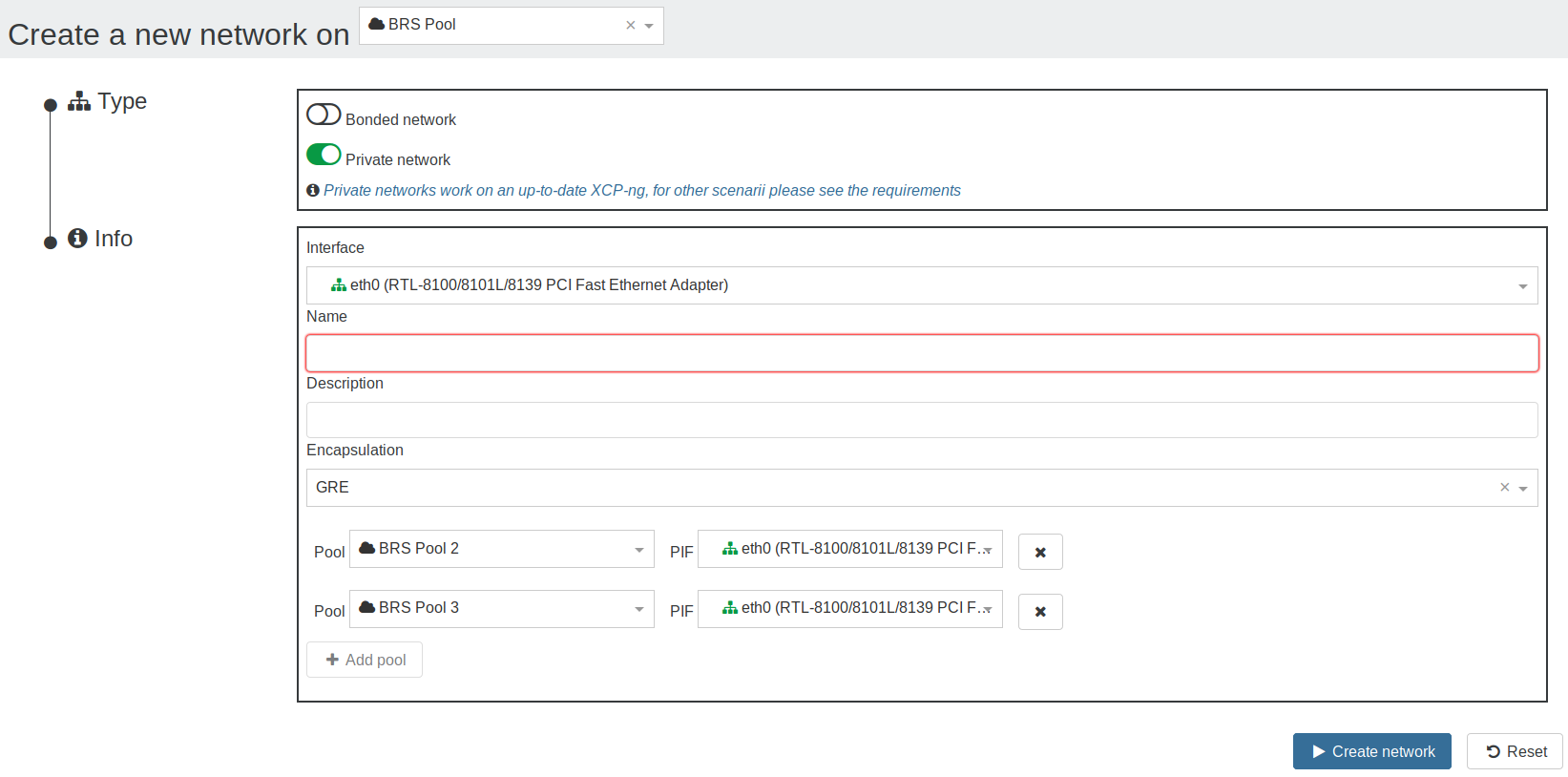

In the network creation view:

Select a pool
Select Private network
Select an interface on which to create the network's tunnels
Select the encapsulation: a choice is offered between GRE and VxLAN, if VxLAN is chosen, then port 4789 must be open for UDP traffic on all the network's hosts (see the requirements)
Select other pools to add them to the network if desired
- For each added pool: select an interface on which to create the tunnels
Create the network
Have fun! ☺

Configuration

Like all other xo-server plugins, it can be configured directly via the web interface, see the plugin documentation.

The plugin's configuration contains:

cert-dir: The path where the plugin will look for the certificates to create SSL connections with the hosts. If none is provided, the plugin will create its own self-signed certificates.
override-certs: Enable to uninstall the existing SDN controller CA certificate in order to replace it with the plugin's one.

Requirements

All requirements are met by running up to date XCP-ng hosts.

On older XCP-ng hosts, or hosts running Citrix Hypervisor, changes might have to be done manually.

To be able to use VxLAN, the following line needs to be added, if not already present, in /etc/sysconfig/iptables of all the hosts where VxLAN is wanted:

-A xapi-INPUT -p udp -m conntrack --ctstate NEW -m udp --dport 4789 -j ACCEPT
